Create UDP Load Balancer

• Log into Console.

• Click Multi-Cloud App Connect.

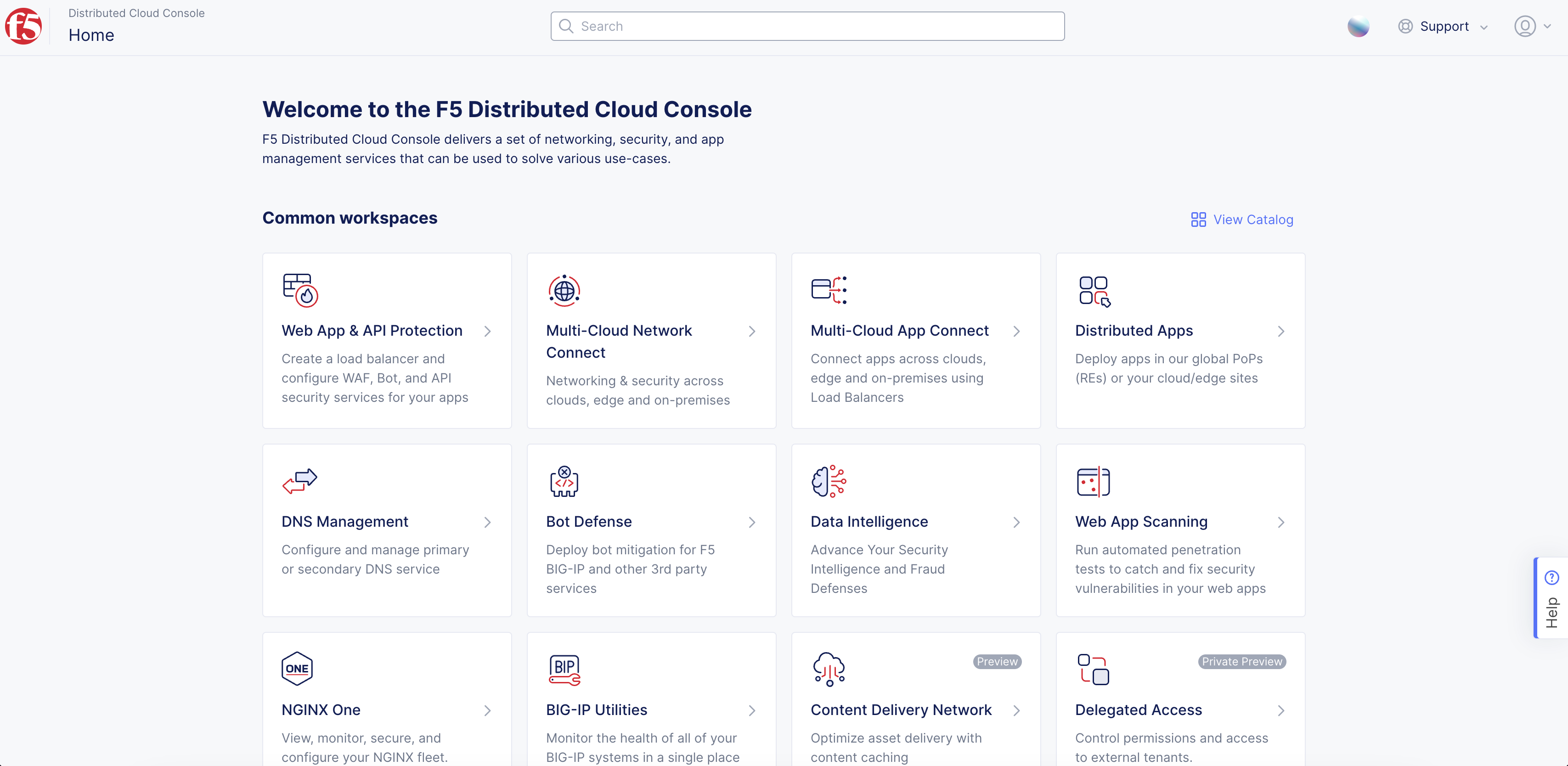

Figure: Console Homepage

• Select your namespace from the menu.

• Select Manage > Load Balancers > UDP Load Balancers.

• Click Add UDP Load Balancer to open the load balancer creation form.

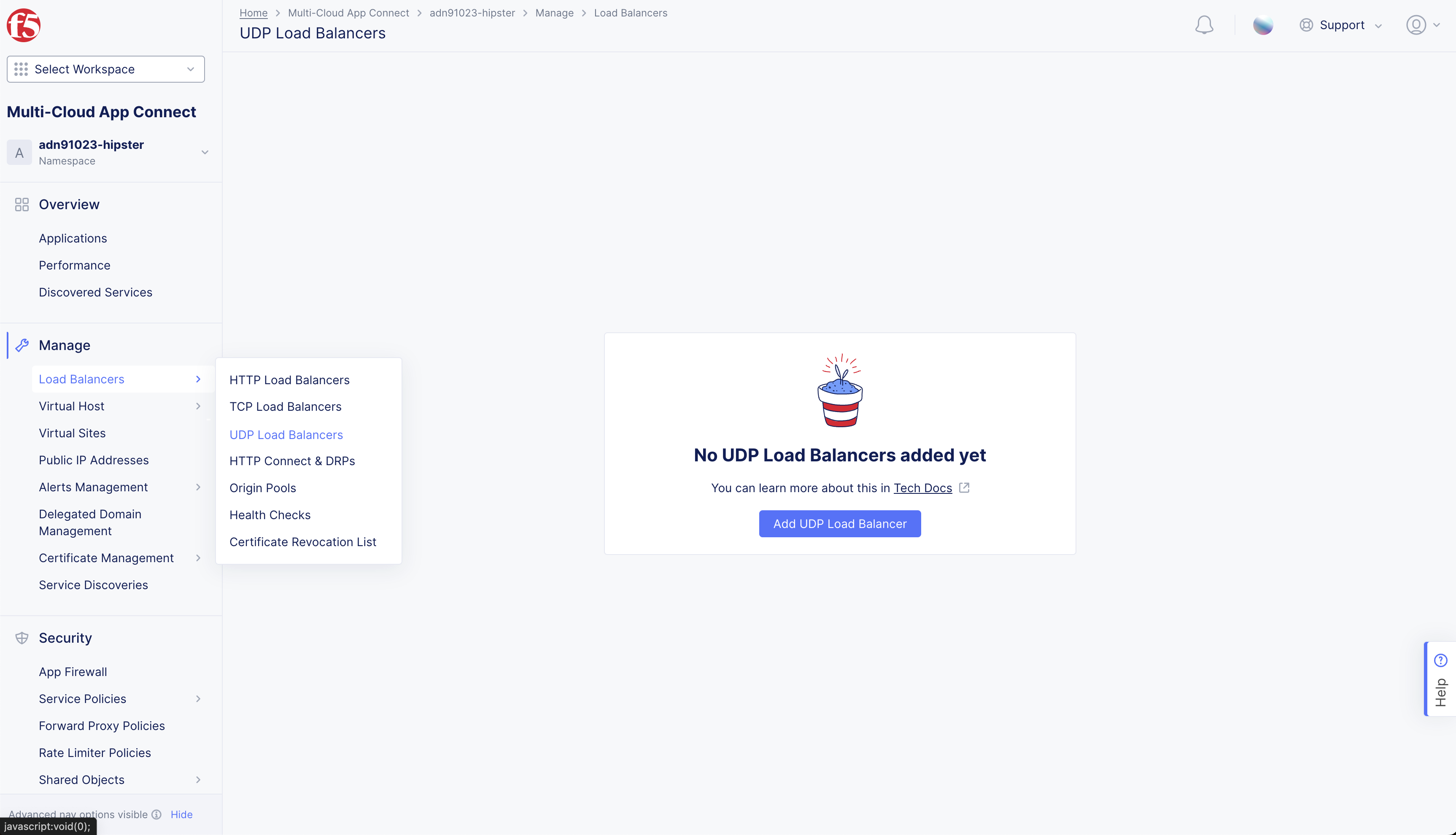

Figure: Navigate to Form

• In the Metadata section, enter a name for your load balancer.

• Optionally, set labels and enter a description.

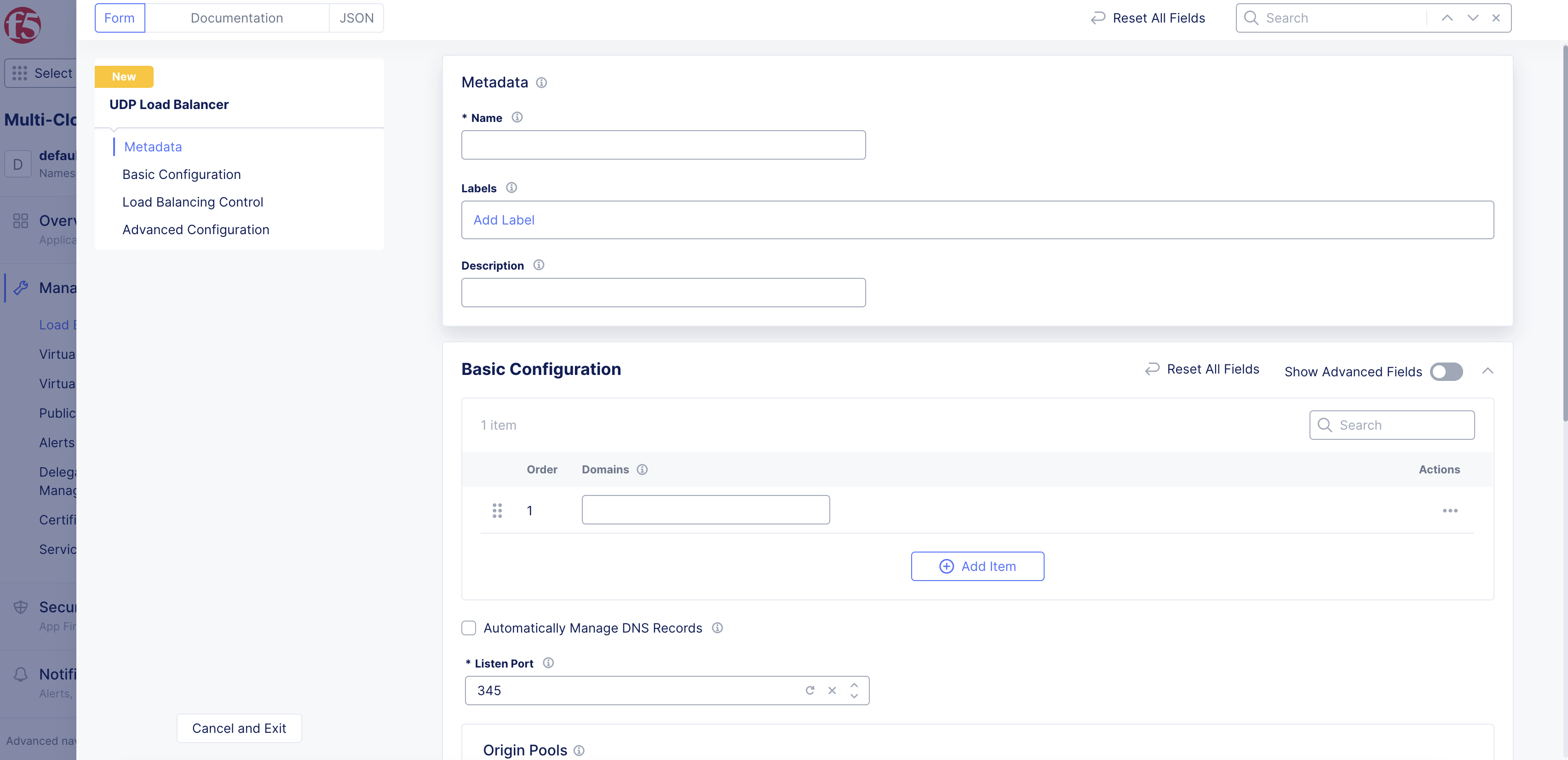

Figure: Creation Form

• In the Basic Configuration section, perform the following:

  • Click Add Item to add a domain. You can add more than one domain.

  • In the Domains field, enter the name of the domain to be used with this load balancer.

  • Optionally, select Automatically Manage DNS Records to have your DNS records managed by Distributed Cloud Services.

  • In the Listen Port field, enter a number. This is the UDP listening port.

• In the Origin Pools field, perform the following:

  • Click Add Item to open the configuration form.

  • From the Origin Pool drop-down menu, select an existing origin pool, or click Add Item to create and apply a new origin pool.

• Optionally, enter values for the Priority option. The Priority field is relevant only if there are multiple origin pools configured on the load balancer.

• Click Apply.

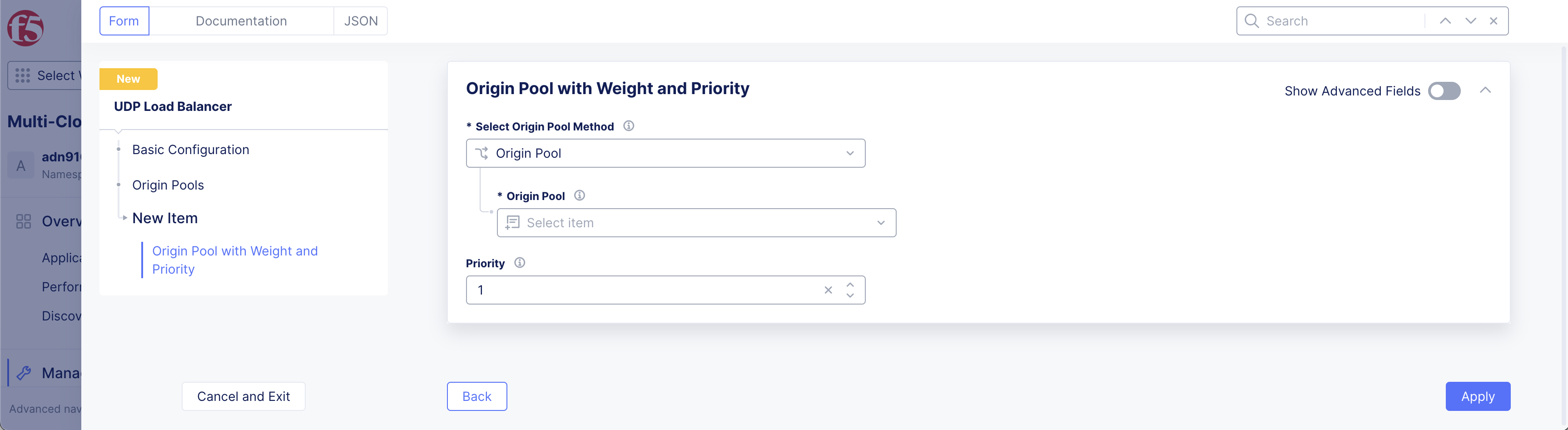

Figure: Creation Form

• Click Add Item to add more origin pools per your requirements.

• From the Where to Advertise the VIP drop-down menu, select an option:

  • Advertise On Public: This option advertises the load balancer on a public network. Default option.

  • Advertise Custom: This option enables you to configure your own advertisement policy.

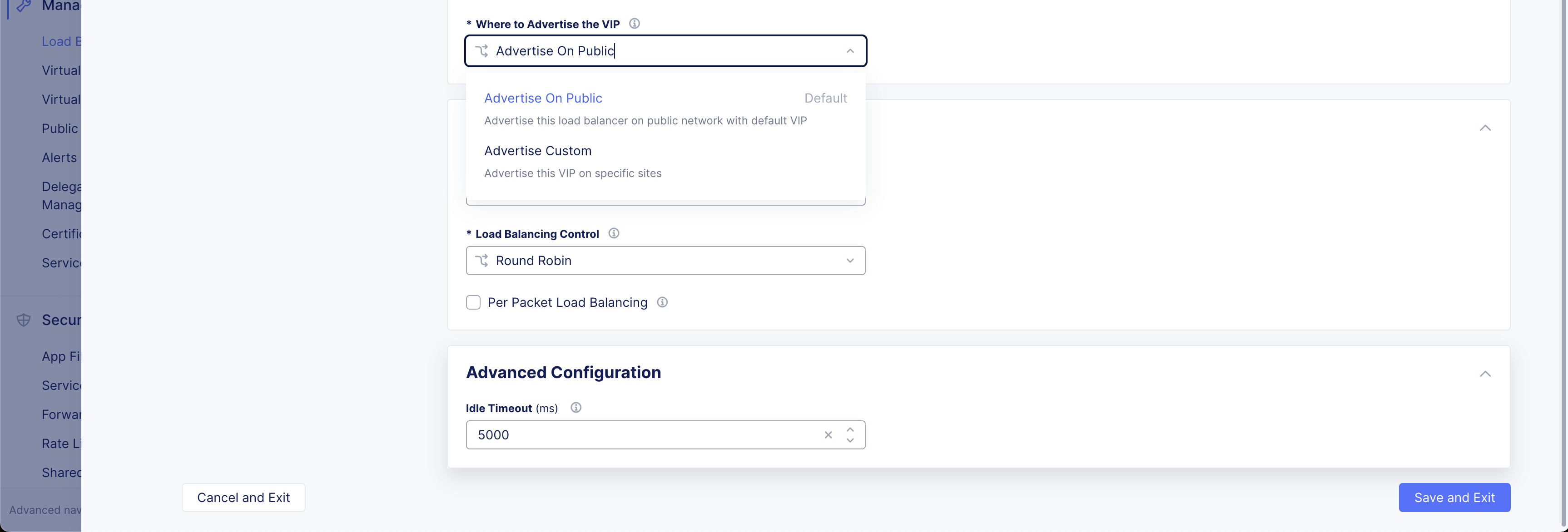

Figure: Creation Form

• To configure a custom VIP:

  • Select Advertise Custom.

  • Click Configure.

  • Click Add Item.

  • From the Select Where to Advertise menu, select an option:

    • Site

    • Virtual Site

    • vK8s Service Network on RE

    • Virtual Network

    • Segment on Site

    • Internet (Specified VIP)

  • From the Site Network menu, select a network type in case you selected Site or Virtual Site as the advertisement location.

  • Select an appropriate reference object from the Site Reference menu.

  • For Site only, enable Show Advanced Fields and then enter an IP address in the IP Address field.

  • Configure a UDP listener port or select the default option from the Listen Port Choice menu. The default option sets port 80 for HTTP and port 443 for HTTPS. Select Listen Port to enter a custom port number.

  • Select Apply.

  • Select Apply again to apply the custom advertise VIP configuration.

In the Load Balancing Control section, configure the load balancer.

• From the Load Balancer Type menu, select an option:

  • UDP: This creates a standard UDP load balancer.

Note: UDP is the only supported option. Specific UDP load balancer types will be supported in the future.

• From the Load Balancing Control menu, select an option:

  • Round Robin

  • Random

  • Source IP Stickiness

• Optionally, select Per Pack Load Balancing to enable, if required.

Note: If Per Packet Load Balancing is disabled (default), the first packet identified by source IP/port and local IP/port is sent to an upstream server as the load balancing algorithm dictates, and subsequent packets with the same identity are forwarded to the same upstream server without rechecking the algorithm. If it is enabled, each packet is directed to an upstream server as the load balancing algorithm dictates.

For the Idle Timeout field, set an amount for the stream.

Click Add UDP Load Balancer.
